| 轴承代号 | 外型尺寸(mm) | 额定负荷(KN) | 极限转速(rpm) | 重量 (Kg) |
||||||||

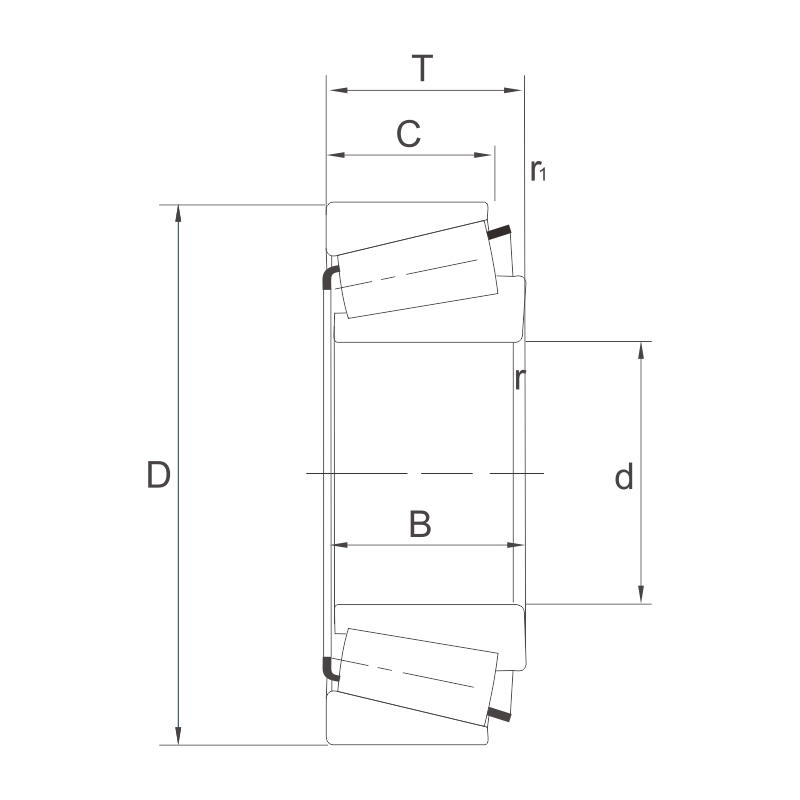

| 新代号 | d | D | B | C | T | rmin | r1min | 动负荷 | 静负荷 | 油润滑 | 脂润滑 | Weight |
| 25580/20 | 44.45 | 82.931 | 25.400 | 19.050 | 23.812 | 3.5 | 0.8 | 76.0 | 98.0 | 6000 | 4500 | 0.558 |
| 25580/21 | 44.45 | 83.058 | 25.400 | 19.050 | 23.812 | 3.5 | 3.3 | 76.0 | 98.0 | 6000 | 4500 | 0.556 |
| 25584/21 | 44.983 | 83.058 | 25.400 | 19.050 | 23.812 | 1.5 | 3.3 | 76.0 | 98.1 | 6000 | 4500 | 0.552 |
| 25590/20 | 45.618 | 82.931 | 25.400 | 19.050 | 23.812 | 3.5 | 0.8 | 76.0 | 98.0 | 6000 | 4500 | 0.542 |
| 25877/21 | 34.925 | 73.025 | 24.608 | 19.050 | 23.812 | 3.5 | 0.8 | 71.0 | 85.0 | 7100 | 5300 | 0.461 |
| 26882/22 | 41.275 | 79.375 | 25.400 | 19.050 | 23.812 | 3.5 | 0.8 | 81.0 | 105.0 | 6700 | 5000 | 0.524 |
| 28580/21 | 50.8 | 92.075 | 25.400 | 19.840 | 24.608 | 3.5 | 0.8 | 85.0 | 117.0 | 5600 | 4200 | 0.698 |
| 28985/20 | 60.325 | 101.600 | 25.400 | 19.845 | 25 400 | 3.5 | 3.3 | 90.6 | 135.3 | 4700 | 3500 | 0.788 |
| 29590/22 | 66.675 | 107.950 | 25.400 | 19.050 | 25.400 | 3.5 | 0.8 | 92.0 | 140 | 4500 | 3200 | 0.838 |
| 29685/20 | 73.025 | 112.712 | 25.400 | 19.050 | 25.400 | 3.5 | 3.3 | 86.0 | 91.0 | 4100 | 3100 | 0.863 |
| LM29748/10 | 38.1 | 65.088 | 18.288 | 13.970 | 18.034 | 3.5 | 1.3 | 43.2 | 56.5 | 7400 | 5300 | 0.230 |
| LM29749/10 | 38.1 | 65.088 | 18.288 | 13.034 | 18.034 | 2.3 | 1.3 | 44.0 | 57.0 | 7400 | 5500 | 0.238 |
| 33885/21 | 44.445 | 95.250 | 28.575 | 22.225 | 27.783 | 0.8 | 2.3 | 108.0 | 142.0 | 5400 | 4100 | 0.95 |
| 33889/21 | 50.8 | 95.250 | 28.575 | 22.225 | 27.783 | 3.5 | 2.3 | 108.0 | 142.0 | 5400 | 4100 | 0.840 |
| 33895/21 | 53.975 | 95.250 | 28.575 | 22.225 | 27.783 | 3.5 | 2.3 | 108.0 | 142.0 | 5400 | 4100 | 0.780 |
| 39573/20 | 50.8 | 11 2.712 | 30.162 | 23.812 | 30.162 | 0.8 | 3.3 | 147.0 | 206.0 | 4200 | 3200 | 1.500 |
| 39578/20 | 53.975 | 112.712 | 30.162 | 23.812 | 30.162 | 3.5 | 3.3 | 147.0 | 206.0 | 4200 | 3200 | 1.458 |
| 39581/20 | 57.15 | 112.712 | 30.162 | 23.812 | 30.162 | 3.5 | 3.3 | 147.0 | 206.0 | 4200 | 3200 | 1.376 |
| 39590/20 | 66.675 | 112.71 2 | 30.162 | 23.812 | 30.162 | 3.5 | 3.3 | 146.6 | 205.7 | 4200 | 3200 | 1.376 |
| 42381/584 | 96.838 | 148.430 | 28.971 | 21.433 | 28.575 | 3.5 | 3.0 | 138.0 | 215.0 | 3100 | 2300 | 1.630 |
| L44643/10 | 25.4 | 50.292 | 14.732 | 10.668 | 14.224 | 1.3 | 1.3 | 28.5 | 34.0 | 10000 | 7300 | 0.123 |
| L44649/10 | 26.988 | 50.292 | 14.732 | 10.688 | 14.224 | 3.5 | 1.3 | 28.5 | 34.0 | 10000 | 7300 | 0.118 |
| 45290/20 | 57.15 | 104.775 | 30.958 | 23.812 | 30.162 | 2.3 | 3.3 | 125.3 | 164.5 | 4900 | 3700 | 1.082 |
| L45449/10 | 29 | 50.292 | 14.732 | 10.688 | 14.224 | 3.5 | 1.3 | 28.0 | 35.0 | 9700 | 7100 | 0.111 |
| 46790/20 | 165.1 | 225.425 | 39.688 | 33.338 | 41.275 | 3.5 | 3.3 | 272.0 | 589.0 | 1700 | 1300 | 4.654 |
| 46792/20 | 166.688 | 225.425 | 39.688 | 33.338 | 41.275 | 3.6 | 3.3 | 272.8 | 590.6 | 1700 | 1300 | 4.502 |
| 47487/20 | 69.85 | 120.000 | 32.545 | 26.195 | 32.545 | 3.5 | 3.3 | 147.0 | 214.0 | 4000 | 3000 | 1.450 |
| 47686/20A | 82.55 | 133.350 | 33.338 | 26.195 | 33.338 | 3.5 | 2.5 | 140.5 | 215.7 | 3500 | 2600 | 1.683 |
| LM48548/10 | 34.925 | 65.088 | 18.288 | 13.970 | 18.034 | 4.9 | 1.3 | 47.0 | 56.0 | 7600 | 5700 | 0.246 |
| 511482 | 60.000 | 135.000 | 31.000 | 22.000 | 33.500 | 3.5 | 3.0 | 145.4 | 176.8 | 3600 | 2700 | 2.077 |
| 64450/700 | 114.300 | 177.800 | 41.275 | 30.162 | 41.275 | 3.5 | 3.3 | 237.4 | 383.2 | 2600 | 1900 | 3.490 |
| L67048/10 | 31.750 | 59.131 | 16.764 | 11.811 | 15.875 | 5.0 | 1.3 | 32.0 | 36.0 | 8400 | 6300 | 0.175 |
| 67390/22 | 133.350 | 196.850 | 46.038 | 38.100 | 46.038 | 3.6 | 3.3 | 147.0 | 206.0 | 2300 | 1700 | 4.593 |
| L68149/10 | 34.988 | 59.131 | 16.764 | 11.938 | 15.875 | 3.6 | 1.3 | 34.5 | 46.4 | 8100 | 6100 | 0.171 |
| L68149/11 | 34.988 | 59.974 | 16.764 | 11.938 | 15.875 | 3.6 | 1.3 | 34.5 | 46.4 | 8100 | 6100 | 0.180 |
| 68462/712 | 117.475 | 180.975 | 31.750 | 25. 400 | 34.925 | 3.6 | 3.3 | 172.1 | 247.4 | 2700 | 2000 | 2.717 |
| JL69349/10 | 38.000 | 63.000 | 17.000 | 13.500 | 17.000 | 3.6 | 1.3 | 43.9 | 58.2 | 7600 | 5700 | 0.201 |
| 70196 | 90.000 | 150.000 | 36.000 | 29.900 | 38.500 | 2.5 | 2.5 | 202.3 | 302.0 | 3300 | 2500 | 2.470 |
| M88048/10 | 33.338 | 68.262 | 22.225 | 17.462 | 22.225 | 0.8 | 1.5 | 56.5 | 71.5 | 7500 | 5600 | 0.320 |
| M86649/10 | 30.162 | 64.292 | 21.433 | 16.670 | 21.433 | 1.5 | 1.5 | 52.5 | 66.1 | 7200 | 5400 | 0.330 |
| HM89440/10 | 31.750 | 76.200 | 28.575 | 23.020 | 29.370 | 0.8 | 3.3 | 79.0 | 106.1 | 6800 | 5100 | 0.683 |
| TR081004 | 40.000 | 95.000 | 36.000 | 28.000 | 36.250 | 2.5 | 2.0 | 139.5 | 166.7 | 4600 | 3400 | 1.269 |
| LM102949/10 | 45.242 | 73.431 | 19.812 | 15.748 | 19.812 | 3.5 | 0.8 | 55.5 | 78.0 | 6400 | 4700 | 0.308 |
| JLM104948/10 | 50.000 | 82.000 | 21 500 | 17.000 | 21.500 | 3.0 | 0.5 | 73.8 | 101.3 | 5700 | 4300 | 0.428 |
| LM104949/10 | 50.800 | 82.000 | 22.225 | 17.000 | 21. 590 | 3.5 | 1.3 | 70.0 | 94.0 | 5700 | 4300 | 0.419 |
| LM104949/11 | 50.800 | 82.550 | 22.225 | 16.510 | 21.590 | 3.5 | 1.3 | 70.8 | 95.8 | 5700 | 4300 | 0.432 |
| JM205149/10 | 50.000 | 90.000 | 28.000 | 23.000 | 28.000 | 3.0 | 2.5 | 105.6 | 138.9 | 5800 | 4300 | 0.720 |
| JM205149A/10 | 50.000 | 90.000 | 28.000 | 23.000 | 28.000 | 5.0 | 2.5 | 105.6 | 138.9 | 5800 | 4300 | 0.720 |
| JM207049/10 | 55.000 | 95.000 | 29.000 | 23.500 | 29.000 | 1.5 | 2.5 | 110.4 | 151.0 | 5300 | 4000 | 0.800 |
| HM212047/11 | 63.500 | 122.238 | 38.354 | 29.718 | 38.100 | 7.0 | 3.3 | 191.5 | 251.1 | 4100 | 3100 | 1.934 |
| HM212049/11 | 66.675 | 122.238 | 38.354 | 29.71 8 | 38.100 | 3.5 | 3.3 | 191.5 | 251.1 | 4600 | 3100 | 1.847 |
| 轴承代号 | 外型尺寸(mm) | 额定负荷(KN) | 极限转速(rpm) | 重量 (Kg) |
||||||||
| 新代号 | d | D | B | C | T | rmin | r1min | 动负荷 | 静负荷 | 油润滑 | 脂润滑 | Weight |
| HM218248/10 | 89.975 | 146.975 | 40.000 | 32.500 | 40.000 | 7.0 | 3.5 | 235.0 | 350.0 | 3200 | 2400 | 2.495 |
| HH221449/10 | 101.600 | 190.500 | 57.531 | 46.038 | 57.150 | 8.0 | 3.3 | 442.8 | 608.5 | 3100 | 2300 | 6.927 |
| L225849/10 | 127.000 | 169.862 | 26.195 | 20.638 | 25.400 | 1.5 | 1.5 | 140.2 | 275.0 | 2000 | 1500 | 1.600 |
| L225849/18 | 127.000 | 180.975 | 26.195 | 20.638 | 25.400 | 1.5 | 1.5 | 140.2 | 275.0 | 2000 | 1500 | 2.044 |
| NP353549/NP673396 | 35.000 | 72.000 | 23.500 | 19.000 | 24.000 | 2.0 | 1.5 | 63.9 | 79.9 | 7200 | 5400 | 0.450 |
| NP390444/NP750997B | 31.750 | 61.986 | 19.05 | 7.830 | 18.562 | 3.6 | 1.5 | 43.3 | 51.1 | 7700 | 5700 | 0.238 |
| H414245/10 | 68.262 | 136.525 | 41.275 | 31.750 | 41.275 | 3.5 | 3.3 | 240.5 | 307.0 | 3700 | 2700 | 2.677 |
| LM501349/10 | 41.275 | 73.431 | 19.812 | 14.732 | 19.558 | 3.5 | 0.8 | 55.0 | 68.0 | 6600 | 5000 | 0.325 |
| LM501349/14 | 41.275 | 73.431 | 19.812 | 16.604 | 19.588 | 3.5 | 0.8 | 56.0 | 70.0 | 6600 | 5000 | 0.323 |
| JLM506849/10 | 55.000 | 90.000 | 23.000 | 18.500 | 23.000 | 1.5 | 0.5 | 81.1 | 113.3 | 5300 | 3900 | 0.550 |
| JLM508748/10 | 60.000 | 95.000 | 24.000 | 19.000 | 24.000 | 5.0 | 2.5 | 83.0 | 123.9 | 4900 | 3700 | 0.595 |
| JM515649/10 | 80.000 | 130.000 | 34.000 | 28.500 | 35.000 | 3.0 | 2.5 | 168.2 | 255.2 | 3600 | 2700 | 1.718 |
| HM518445/10 | 88.900 | 152.400 | 39.688 | 30.162 | 39.688 | 6.4 | 3.3 | 253.0 | 365.0 | 3200 | 2200 | 2.819 |
| LM603049/11 | 45.242 | 77.788 | 19.842 | 15.080 | 19.842 | 3.5 | 0.8 | 57.0 | 73.0 | 6300 | 4500 | 0.365 |
| LM603049/12 | 45.242 | 77.788 | 19.842 | 16.667 | 21.430 | 3.5 | 0.8 | 57.0 | 73.0 | 6300 | 4500 | 0.385 |
| JLM714149/10 | 75.000 | 115.000 | 25.000 | 19.000 | 25.000 | 3.0 | 2.5 | 93.4 | 140.7 | 4000 | 3000 | 0.847 |
| JM714249A/10 | 75.000 | 120.000 | 29.500 | 25.000 | 31.000 | 6.0 | 2.5 | 145.7 | 216.0 | 3900 | 2900 | 1.258 |
| H715345/11 | 71.438 | 136.525 | 46.038 | 36.512 | 46.038 | 3.5 | 3.3 | 232.0 | 368.0 | 3500 | 2600 | 3.100 |
| JM716649/10 | 85.000 | 130.000 | 29.000 | 24.000 | 30.000 | 3.0 | 2.5 | 142.8 | 228.1 | 3500 | 2600 | 1.375 |
| JLM813049/10 | 70.000 | 110.000 | 25.000 | 20.500 | 26.000 | 0.9 | 1.0 | 102.5 | 156.4 | 4400 | 3300 | 2.500 |
| H924033/10 | 101.600 | 214.312 | 52.388 | 39.688 | 55.562 | 3.5 | 3.3 | 405.9 | 563.1 | 2400 | 1700 | 8.967 |
| 528983 | 70.000 | 130.000 | 56.000 | 35.000 | 57.000 | 11.0 | 2.5 | 234.8 | 339.5 | 3000 | 2300 | 2.92 |
| M5R2-124 | 39.688 | 89.980 | 22.12800 | 20.856 | 25.580 | 0.8 | 0.8 | 73 | 92.8 | 7200 | 5400 | 0.747 |
